In the era of Model-Based Definition (MBD), Product and Manufacturing Information (PMI) isn’t just a nice-to-have, it’s the lifeblood of a truly connected Model-Based Enterprise (MBE). But PMI is only valuable if it’s accurate, compliant, and complete, both for human interpretation and for machine-readable automation. A single inconsistency can lead to costly rework, production delays, or even product recalls.

That’s where Elysium’s new PMI Checker comes in, part of the Elysium 3D-SUITE Platform:

What is PMI Checker?

  • PMI Checker is an automated MBD quality validation tool that:
    • Verifies the accuracy of PMI annotations
    • Checks the compliance to ISO and ASME standards
    • Confirms the semantic completeness for machine interpretation and automation
    • Confirms the graphical representation for human interpretation
    • Instills confidence that your MBD PMI is correct the first time, before release!

Think of PMI Checker as your first line of defense, catching PMI issues before they become production problems.

The result?

  • Consistent PMI interpretation across people, processes, and tools
  • Fewer costly engineering changes after release
  • Improved data translation to MBD interoperable formats like QIF and STEP 242
  • Maximum reuse of MBD data across the enterprise

PMI Checker is designed to be used before MBD data is released, catching errors early and ensuring every stakeholder, from engineering to manufacturing to quality, works from a trusted, accurate model. PMI Checker should be used in all enterprise domains where PMI is created:

Domain Example Use-Case (Not Limited to)
Engineering Engineering MBD Models with PMI
Manufacturing In-Process MBD Models with PMI
Quality Inspection Fixtures, Gages, and Tooling MBD Models with PMI

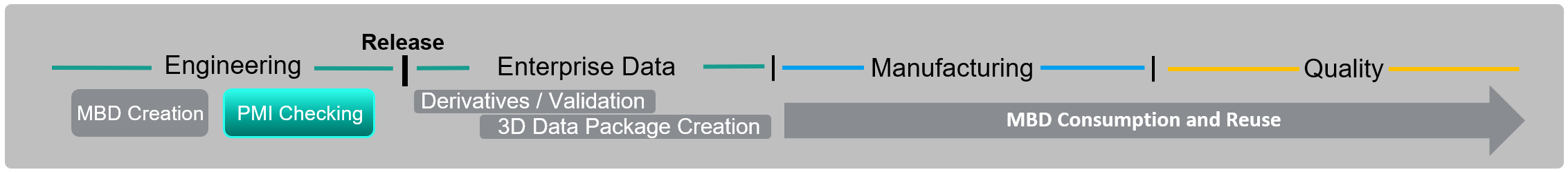

Example: Engineering domain using PMI Checker before release.

PMI Checker’s Coverage

At launch, PMI Checker offers 30 checks across four categories, complying with ISO 10303-1851:2024 PMI Data Quality:

  1. Dimensions – Ensure all dimensions are correct and compliant
  2. Datums – Confirm datums and datum reference frames are set up for success
  3. Geometric Tolerances – Ensure all geometric controls are correct and compliant
  4. General – Review other PMI elements for completeness

Future enhancements will expand these checks and introduce new categories to meet evolving industry needs.

Two Ways to Use PMI Checker

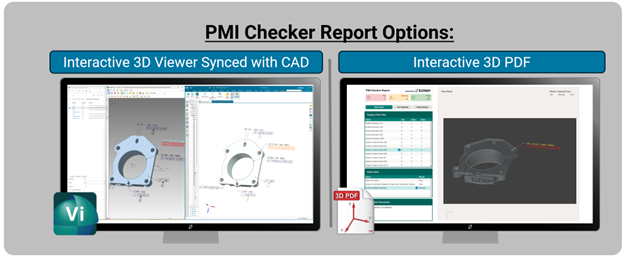

PMI Checker results can be reviewed and acted on in two intuitive ways:

1. 3D Viewer Synced with Your CAD System

  • Using Elysium’s Model Viewer, synchronized with your native CAD system, review PMI Checker results and update PMI annotation issues in real-time.

2. Interactive 3D PDF Report

  • A 3D PDF report can be generated to showcase PMI Checker results in an interactive method.

Why It Matters for MBE Success

In a Model-Based Enterprise, precise and standards-compliant PMI unlocks the true potential of MBD. When annotations are correct and complete, your 3D models can be seamlessly reused across:

  • Engineering
  • Manufacturing
  • Quality
  • Supply-chain

This traceability and MBD/PMI reuse not only saves time but also reduces risk from human error from manual transcription, enabling faster product cycles, faster to market, and improved quality.

Ready to take your MBD data quality to the next level?

If you’re ready to elevate your MBD workflows, PMI Checker is the logical next step. It will empower your teams to release data with confidence, support seamless cross-domain collaboration, and accelerate your journey toward a truly model-based enterprise.

Contact Elysium today to schedule a live demo and see how PMI Checker can improve your workflows, boost compliance, and drive digital transformation across your business.
