Simplification & Solid Enveloping

LIGHTWEIGHT. FAST. PROTECTED.

Not everyone needs a fully detailed model. Simplify for FEA, space claim, light-weighting and intellectual property protection.

Learn More

Simplification & Solid Enveloping // Protecting and optimizing 3D data

Overview
Use Cases
Start a Trial

Sometimes less is more

3D CAD models are a great design communication tool, but sometimes fully detailed models are huge in size making downstream processing quite inefficient. Simplifying 3D data by enveloping or removing features such as fillets, chamfers, holes, ribs, bosses, and more can reduce data size dramatically, making data consumption, especially in CAE analysis, straightforward.

Simplify your 3D CAD models to speed up your simulation workflows.

See how Elysium can help your transition from CAD to CAE

Protecting 3D data

Your design is your property. Remove features and non-visible parts to ensure that only necessary information is shared. Whether you are sharing to a customer or supplier, protect your 3D data.

Protect your design details and internal components

See how to remove intellectual features or parts efficiently

See how Elysium’s Simplification can help you

Start Simplifying

Automated or Interactive

Automatically generate a simplified model through a predefined scenario(s) or interactively remove features and internal components

Designed for CAE

Move towards analysis faster than ever with simplified models for FEA, injection molding analysis, and many other CAE applications

Target specific features

Our simplification allows you to remove specific features without affecting adjacent geometry

Key Features

Recognizing and Removing Features

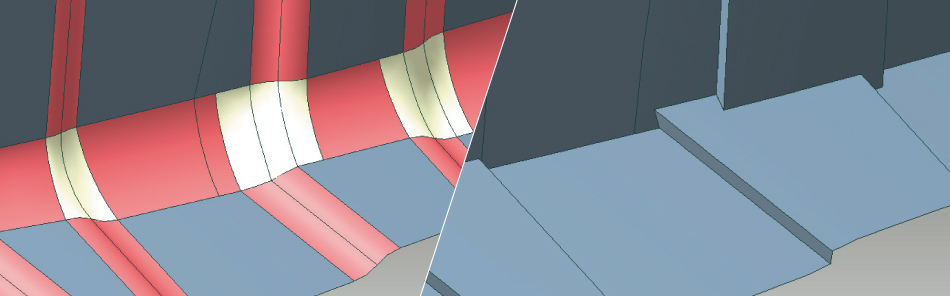

Recognize and easily remove geometric features such as fillets and chamfers without the CAD feature tree information.

Remove Internal Components

Remove proprietary geometry and components to ensure that only necessary information is shared by automatically removing holes and joining all parts in the assembly.

Extract Surfaces

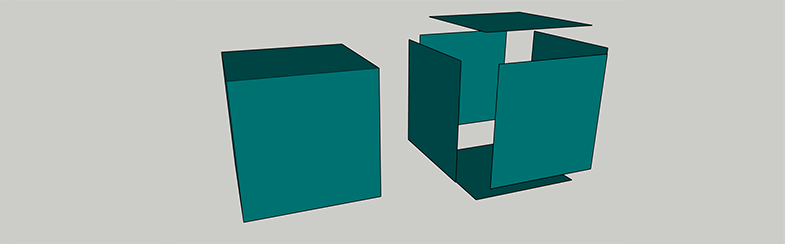

Create the outer shell of your model without wall thickness. Great for space claim, product packaging, and protecting IP.

Use Cases

See how Elysium’s Simplification can help you with a multitude of your business needs. Just a few of the common Use Cases.

IP Protection

Ensure that only necessary information is shared. Remove proprietary geometry and components.

Learn More

CAE Analysis

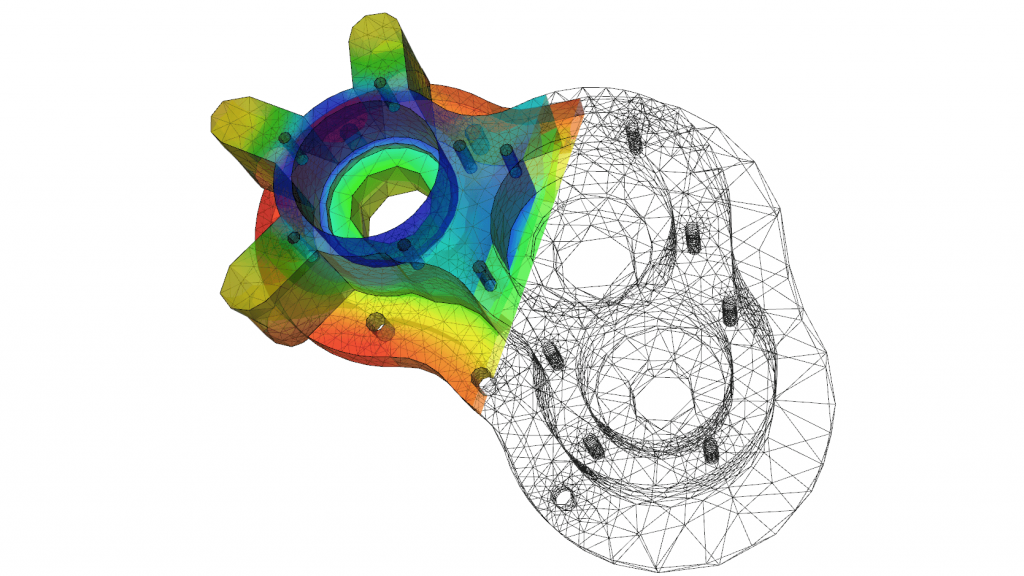

Remove fillets, chamfers and other geometry to streamline and accelerate your FEA meshing creation.

Learn More

Shrink Wrapping

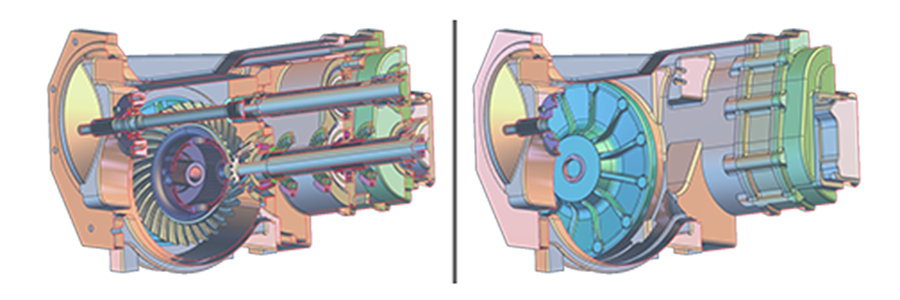

Create an envelope solid or extract the surface of model to capture the model’s geometry without the file weight.

Learn More

Additional Use Cases

Space Claim
Product Packaging
Extract Internal Space
AR/VR Optimization

IP PROTECTION

Your model is your
intellectual property

If a model needs to be shared with customers or suppliers, Elysium Simplification solution allows you to only share what needs to be shared. Quickly remove proprietary information with confidence.

Remove internals and non-visible components

Remove without affecting the rest of the geometry

Quickly remove IP geometry

Automatable for a streamlined process

CAE ANALYSIS

CAE made simple

Improve model optimization for computer aided engineering analysis. Whether its Computational Fluid Dynamics (CFD) or structural analysis, our Simplification tools are quick and effortless to get the right model for your analysis need.

Simplify your models for CFD and structural analysis

Remove all fillets, chamfers, holes, extrusions, text quickly

Remove all holes or select specific ones

SHRINK WRAPPING

Your model in a nutshell

Simply share the outer representation of your 3D model. Only providing the crucial details without a heavy-weighted model and exposure of intellectual property.

Make it a solid envelope of your model

Remove internal components

Or extract just the exposed surface

Maintain mass and center of gravity

See how Elysium’s Simplification can help you

Start Simplifying

Additional Use Cases

Space Claim

Determine the size or how to mount your model without the file size or exposure of intellectual property. Designed to help suppliers to share protected data.
