Point cloud data is the future and InfiPoints enhances how you process, optimize and share this information.
InfiPoints // Empower Engineering with Infinite Point Clouds
Point Clouds with Infinite Possibilities
Laser point cloud scanning has become the preferred method capturing measurements and volumes for renovations, remodels, equipment replacement and even post-disaster evaluation.
InfiPoints is the most powerful point cloud data processing, modeling, and analytics technology available to maximize the unique capabilities and performance of 3D point cloud data for engineering applications.
Best One-stop Solution for Point Cloud Data
Stress-free Handling

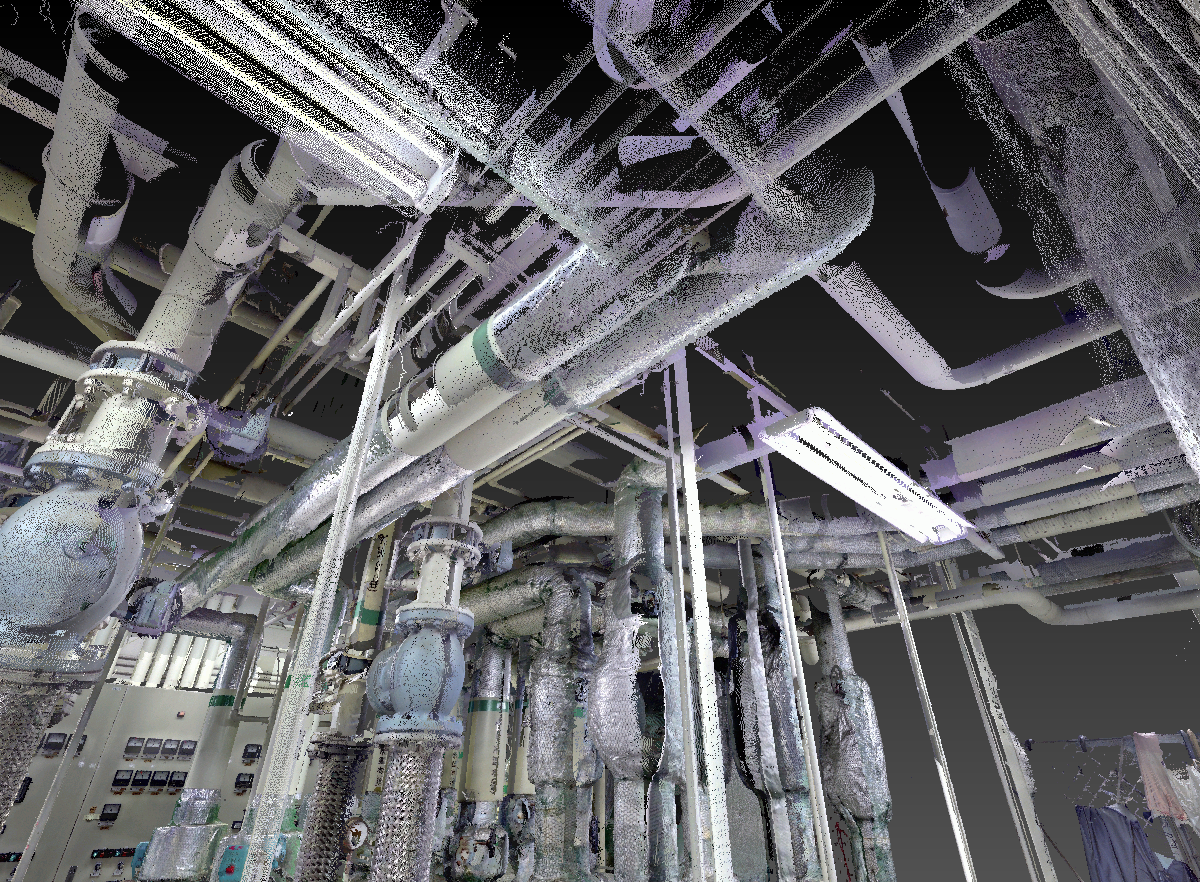

Stress-free handling of billions of points of your scanned data such as that of large buildings, plants and construction sites
High Accuracy Automatic Registration
Point cloud registration as well as quantitative assessments of the result leveraging Elysium’s renowned 3D technology
Fast CAD Modeling

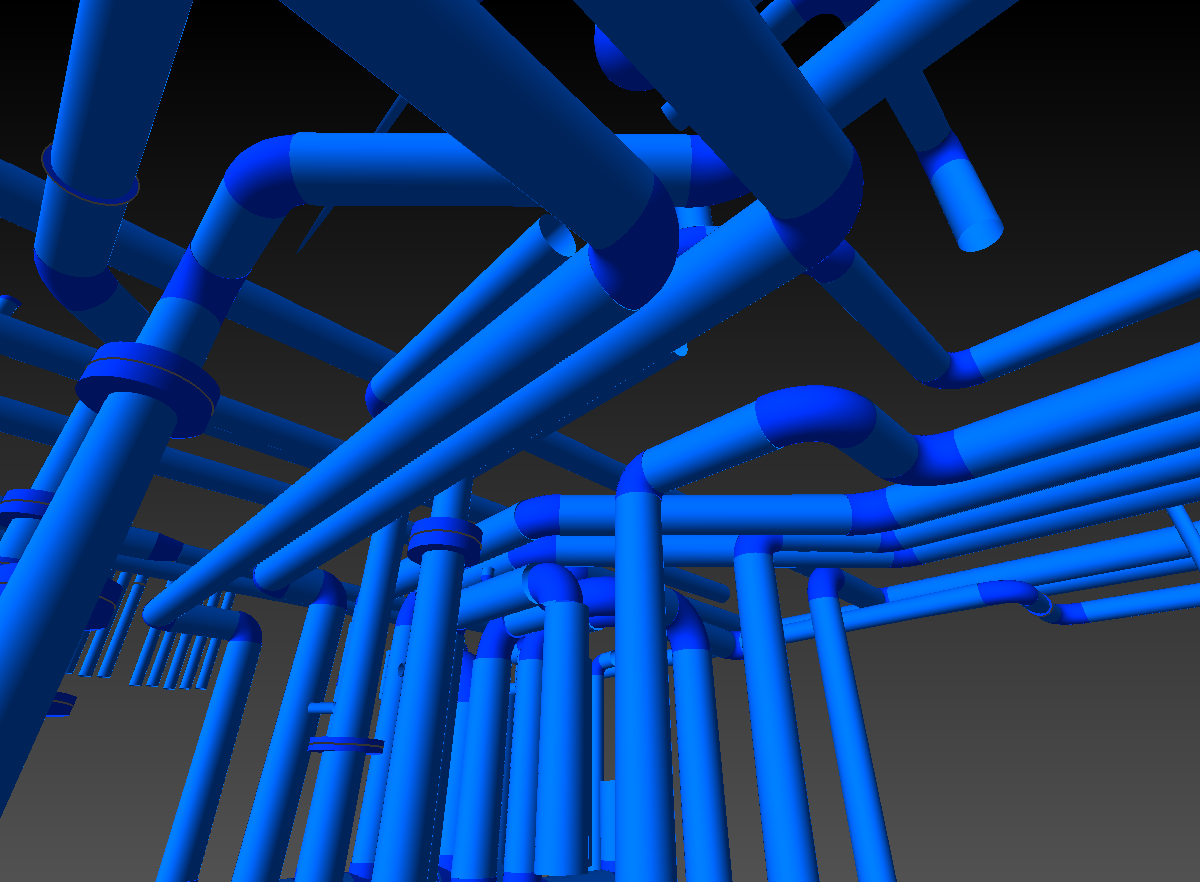

Top-quality automatic feature extraction of planes and cylinders, and trouble-free modeling of pipes and steel structure modeling
BIM Interoperability
3D CAD models generated automatically with parametric information can be further edited in BIM solutions
Optimal Information Sharing and Collaboration
Advanced information sharing via fly-though videos, 2D and 3D drawings, and intelligent viewing files, offering new ways of communication for efficient work processes
Optimizing Workflows with Elysium’s Leading Technology
Elysium offers best-in-class solutions leveraging 3D technologies that lead the industry for over thirty years.
Data Import
Data Pre-processing
Analysis
CAD Modeling
Advanced Outputs
Data Import
One of the biggest advantages of InfiPoints is the capability to import point cloud data from 3D laser scanning without size limitations and view and edit with high performance without being influenced by the data size.
Size Does Not Matter
Size Does Not Matter
Elysium has developed a robust fast rendering technology leveraging its 3D data technology accumulated in over 30-year history. InfiPoints has no data size restrictions, nor experiences decreases in performance.

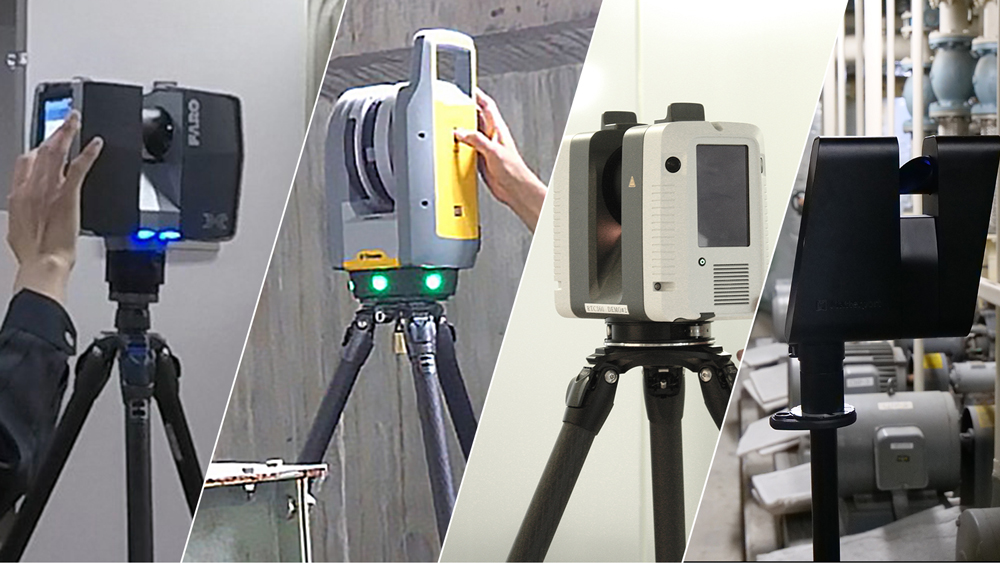

Supported Scanners
Working with the Largest Scanner Manufacturers
No matter what scanner you are using, you are in good hands for your data to work together. Following the industry trends and adding support for the latest technologies through the alliance with vendors and distributors of all the major 3D scanners, InfiPoints assists in streamlining the workflow on structure maintenance management.
Data Pre-processing
InfiPoints offers useful functions to easily and quickly pre-process point cloud data from 3D laser scanning—registers multiple shots automatically, removes all kinds of noise automatically and more.
Automatic Registration
Markerless or Not, High-quality Automatic Registration
Quickly and accurately register multiple point cloud data. Guarantees high accuracy by registering and aligning data using markers, survey information, and planes extracted from point clouds.
Noise Reduction
Clearing Out the Noise..Automatically
Automatically recognizes and removes unwanted noise produced upon overlaying several 3D scans. Moving objects, such as people or cars, are automatically eliminated from the environment
Point Cloud Optimizing
Easier Use Without Loss of Quality
Reduces the data size by decreasing point density using specified intervals between points. This reduces the weight of the point cloud data without sacrificing the accuracy or visual appearance.
Analysis
InfiPoints provides functions to conduct analysis utilizing point cloud data and CAD data—plan carry in or out routes of equipment, compare concept plans versus post-construction state, and more
Measurements

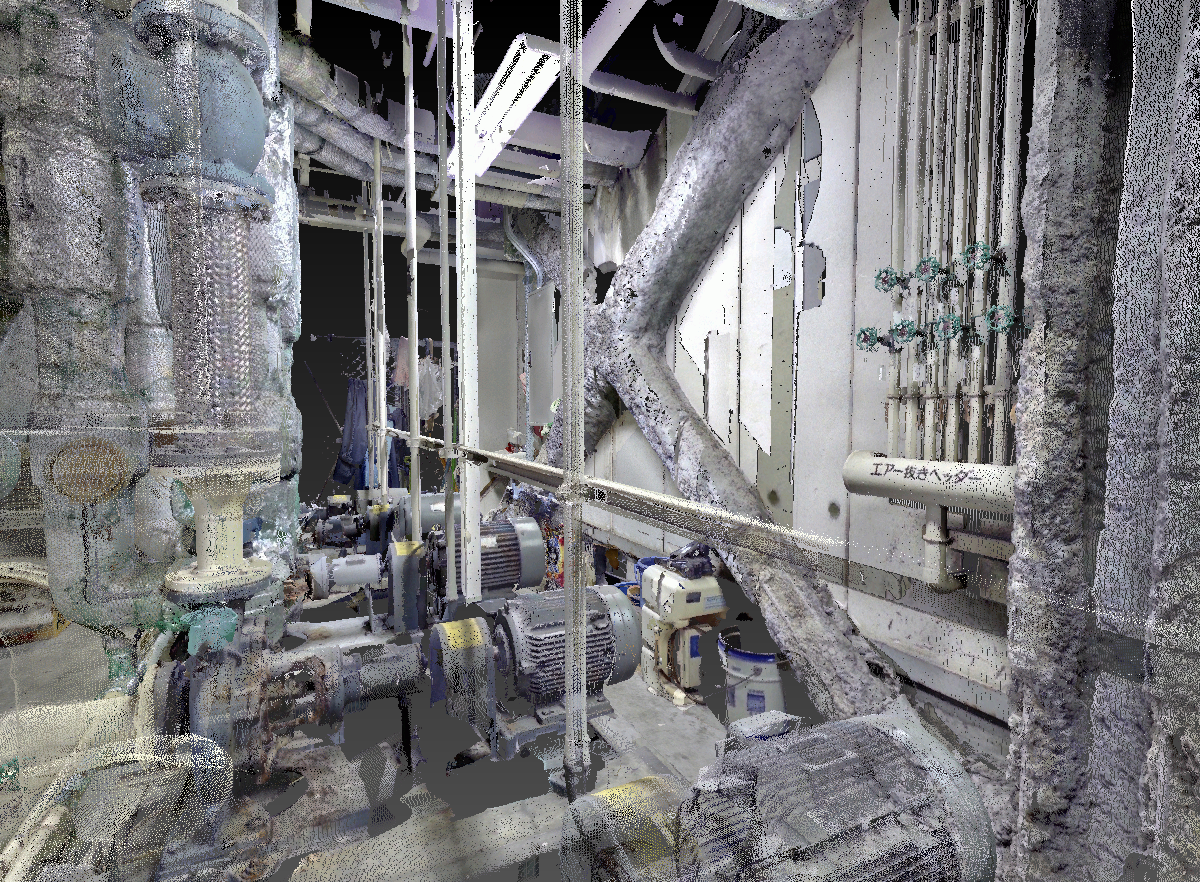

Measure from Extracted Planes & Pipes
Accurately measure distances between any two points as well as distances and angles between extracted planes and cylinders.
Collision Detection
Retrofit Simulation without Modeling
Real-time collision detection can be quickly observed while manipulating imported CAD models within the point cloud.
Point Cloud and CAD Validation
As-built VS As-intended
Detects the differences between the as-built data and CAD data. Ideal for checking between planned construction against the actual environment after construction, tracking changes over time.
CAD Modeling
InfiPoints generates 3D CAD models automatically from point clouds. This dramatically streamlines the process to plan and prepare for the actual operations—saves the time and work to obtain CAD data of existing structures and replaces on-site measurements with 3D measurements on a computer. Moreover, you can export created CAD models including parametric information such as length and diameters, which can be further edited in BIM solutions.
CAD Modeling

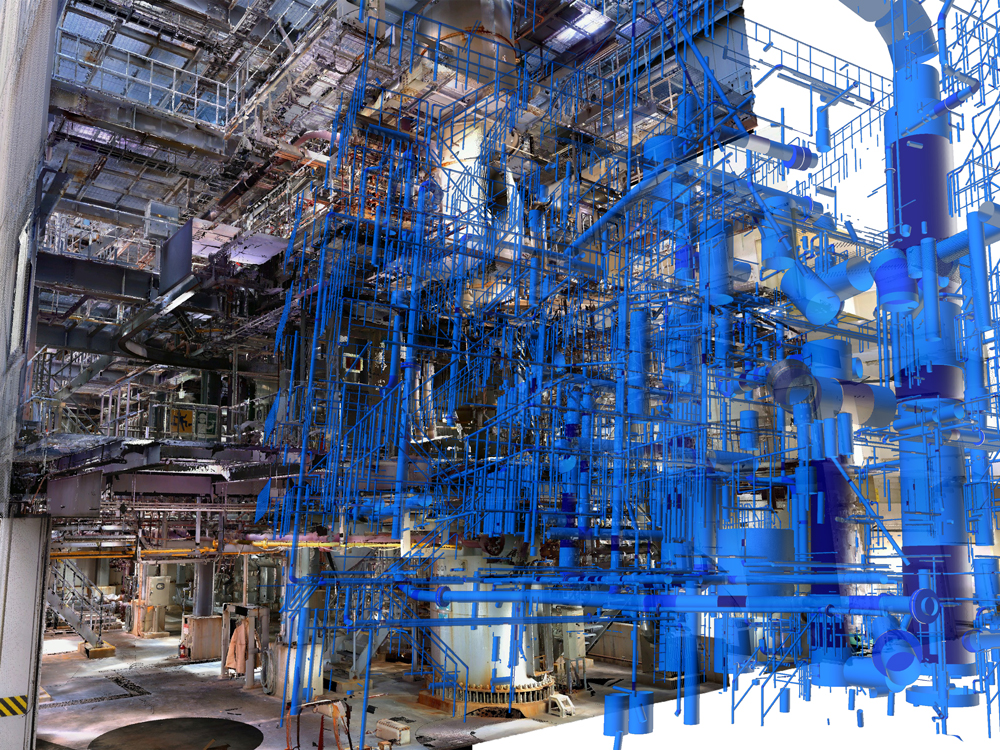

Easy Point Clouds to Models of Pipes, Valves, Equipment, Steel Structures, and Ducts
Utilize automatically extracted cylinders and pipes and easily model your scanned environment. Streamline your downstream workflows such as drawing creation and BIM solution utilization.
Mesh Creation
Generating Mesh
Generates mesh for structures in scanned data automatically from point cloud data, and exports mesh data in STL, VRML, and OBJ formats. The exported data can be referenced within various CAD systems to quickly generate models.
New Capability for Modeling Directly from Laser Scans to Autodesk Revit Available in InfiPoints Ver. 6.0—Improves 3D Point Cloud and BIM Interoperability.
Advanced Outputs
InfiPoints offers capabilities to created advanced outputs – export results from the planning stage in high-resolution 2D images, videos, or create VR ready viewers for an immersive experience, all facilitating communication among members.
VR Experience
Don’t Just View, Feel VR Export―InfiPoints for Oculus
Collaborate virtually from any location export to “Oculus Rift” for an immersive VR experience like never before.
Export Viewer File
InfiPoints Viewer Designed to Share
Export self-contained visualization files which can be distributed to other divisions or companies. Efficient collaboration with stakeholders with data in everyone’s hands
Fly-through Video
Explore Your Data with a Fly-through Video
Users can create high-quality fly-through videos from point cloud data with ease, regardless of data size.
Export Ortho Images
Exporting Orthogonal View Images
Export high resolution images utilizing a specified scale for physical measurement print out or an import into a drawing creation tool
Spreading Word throughout Industries
“Elysium’s state-of-the-art and very robust feature extraction allows point cloud data to be readily integrated with engineering, construction and manufacturing workflows.
With more than thirty years of expertise providing 3D interoperability solutions, Elysium is a valuable technology partner for us.”
Tom Greaves, Chief Marketing Officer – DotProduct LLC
Customer Stories
National Institute of Technology, Matsue College
Shutoko Engineering Company Limited
Sample Data
| InfiPoints Viewer | A self-contained visualization application package with data, can be downloaded to try out the functions of InfiPoints. |
| Revit File | In Revit, you can open and edit the CAD models generated in InfiPoints from point cloud. |
| VR Viewer File (for Oculus) | You can view the point cloud data in VR with a PC connected to your VR device. |
