Point Cloud to CAD

QUALITY. ROBUST. AUTOMATIC.

Whether be it a mold part in a manufacturing factory or an air-conditioning machine room of a high-rise skyscraper in the field of MEP (mechanical, electrical, and plumbing), digitalizing the physical world with 3D scanners has brought innovation to engineering workflows. Elysium has the technology to reprise your captured point cloud data into a CAD model for engineering use cases.

Realizing Innovation in MEP and Plant Engineering

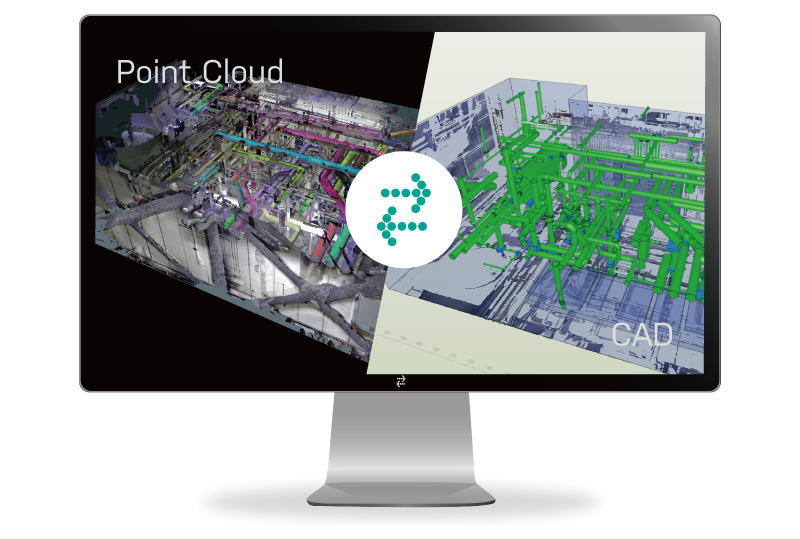

For Long-range 3D Scanning

Eliminate Your 3D Modeling Woes

Process billions of points of point cloud data and automatically extract geometries for modeling of elements such as pipes, equipment, and ducts.

Interoperability is another key to utilizing your modeled point cloud. Elysium has the expertise for streamlining your model into BIM software such as Autodesk Revit.

Learn More about Elysium’s BIM Solutions

Reverse Engineering for Manufacturing

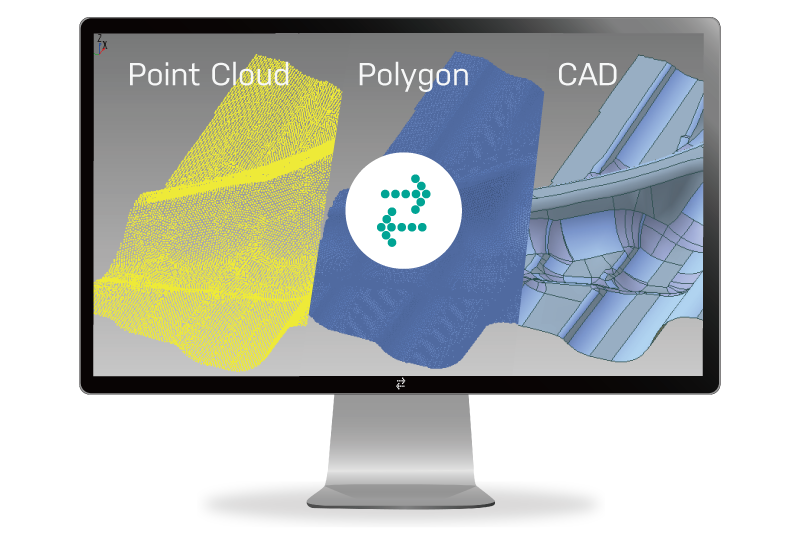

For Short-range 3D Scanning

Bridging Reality and Digital in Manufacturing

How you can effectively utilize the scanned data all comes down to what kind of processing software you have.

Elysium takes the manual work away from you to automatically generate a CAD model from a point cloud as if it was modeled in CAD software. Whether you intend to use it for your reference model or for CAE, is up to you.

Watch the Reverse Engineering Video
