DFX Analyzer
Automatically recognize geometry features from 3D CAD models to support workflow efficiency
DFX Analyzer is a tool that automates conventional visual and manual processes through geometry feature analysis in CAD models.
Solving problems from geometry feature information
When facing challenges in manufacturing, solutions can vary. For instance, observing actual objects can help identify the root cause of an issue, and employing experience and expertise may overcome challenges by changing manufacturing methods, processes, materials, etc.
On the other hand, there is much to be learned and addressed from the geometric information within 3D CAD data that has not yet become a physical object.
For over 35 years, Elysium has been providing CAD data conversion technology.

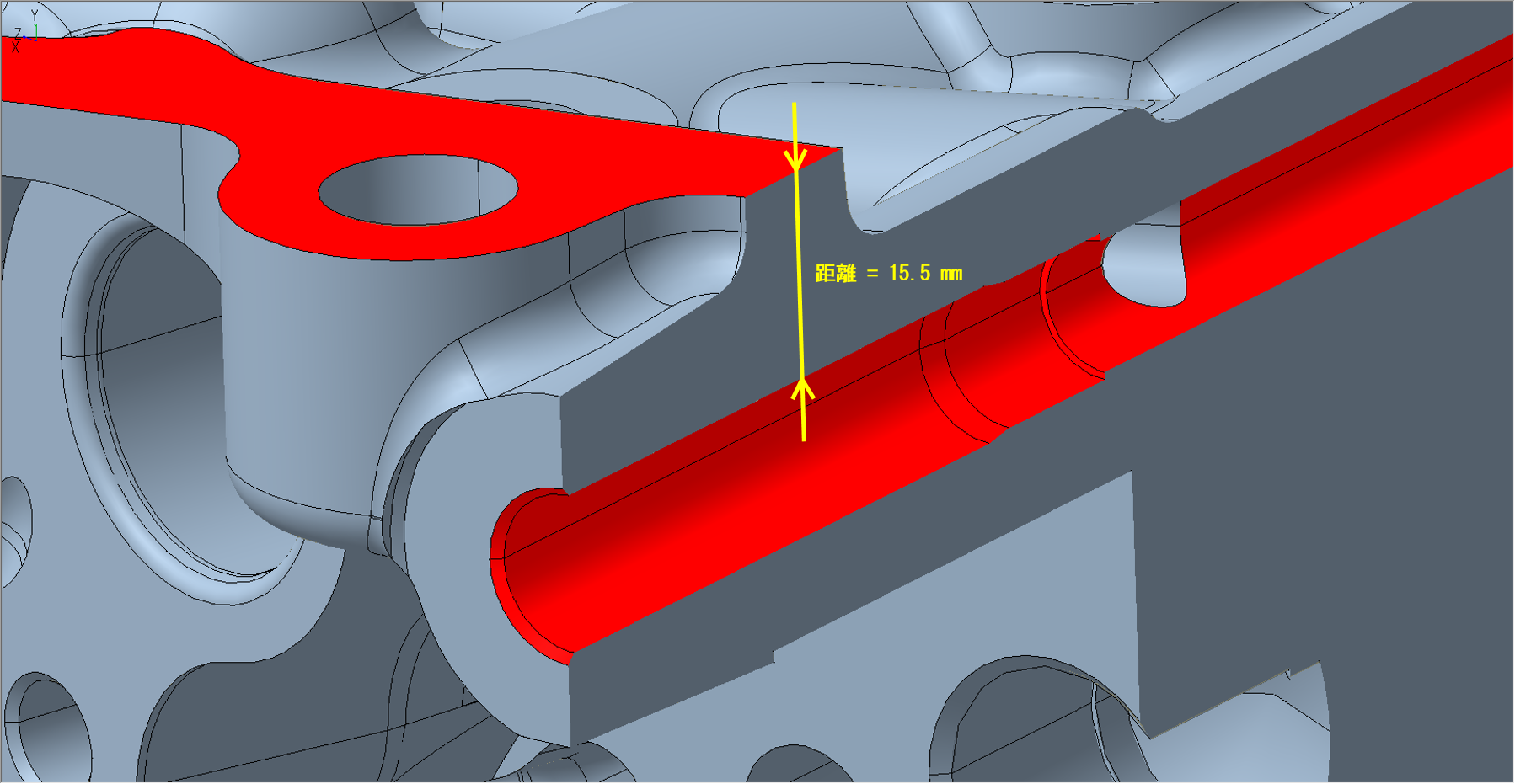

Regardless of the CAD system used by the user, DFX Analyzer detects specific geometric features using mathematical expertise and official API from CAD system developers.
Moreover, DFX Analyzer presents identified geometry-related issues to users in an easily understandable manner, providing support for improving design quality.
Use Cases
Manufacturing Check for
Plastic Parts
Assembly Check for
Automobile White Body
Safety Regulation Check for
Automobile Exterior and Interior Projections
Lineup
Elysium currently offers two plugins tailored to specific applications.
In addition, a product lineup aimed at automation in various areas, including assembly, part manufacturing cost calculation,
and feature recognition for NC path generation, is planned in the future.
Labor savings through automation
Automate tasks traditionally done visually or manually, allowing a focus on more value-added activities
Eliminate rework and shorten lead times
Prevent rework due to issues identified in later stages, leading to a reduction in lead times
Cost reduction through standardization
Reduce costs by eliminating complex processes and promoting standardization
Customer Stories
AISIN CORPORATION
Aisin has successfully built their own system to verify the manufacturability by tuning up DFM Studio on the check criteria, check logic, evaluation threshold, visualization of the evaluation result, etc. flexibly to automate the manufacturability check process maintaining the accuracy from the past manual check.
Mazda Motor Corporation
Based on DFM Studio, Mazda Motor Corporation has custom-developed a functionality to detect the interference between car body parts, and ensure that an appropriate clearance is set between them.
