POWERFUL. FLEXIBLE. LIMITLESS.
Your 3D digital data will be connected, enriched, and ensured
by our modular interoperability platform
Digital End-to-end Interoperability with Maximum Flexibility
Interoperability has never been this easy. Elysium 3DxSUITE focuses on providing you the capabilities you really need.
Freely pick your modules and aggregate them to your individualized solutions that match your engineering and business requirements.
From manual data handling to high throughput, fully automated and integrated processes — you are always in the driver’s seat. Time to start the engine.
Accelerate MBD/MBE
3DxSUITE provides an all-in-one platform essential to support the MBE lifecycle: PDQ check, translation, validation, simplification, and data packages. Every processing option is configurable, allowing you to leverage reusable data optimization scenarios and packaging templates. Your digital assets are secured by our reliable verification and validation technologies.
Benefit from scalability and integration. Our modular 3DxSUITE allows you to begin your model-based journey from any start point now. Expand your solution over time by adding new capabilities step by step at your own pace. Wherever your model-based path will lead you, data sustainability is assured.
Streamlining MBE with Single Point Automation
3DxSUITE, a single provider for the multitude of essential processing steps within an MBE data lifecycle, streamlines capabilities, support, integration, configuration, and upgrades over time. This also allows for extreme flexibility when workflows need to be adapted as data, processes, and cultures evolve.
Modularity
Over 70 adapters, optimizers, front-ends
and utility tools
Scalability
From single user
to global enterprise
Usability & Mobility
Shareable 3D digital data made
for sustainability
All-in-one Platform to support your MBE Lifecycle
3DxSUITE provides all essential technology pieces to support your digital end-to-end engineering processes.
Freely pick and combine – like building blocks – the capabilities that best suit your requirements and build your individual solution.
Highlights
PDQ Check
Check your data quality to ensure geometry is clean for downstream use and manufacturability. Know your design will pass a customer quality check before you get rejected—avoid the cost and time of re-work.
Translation
Convert files without sacrificing quality to enable internal or external collaboration among multiple CAD systems and neutral formats. Or, promote a single, common CAD platform to maintain resources and best practices, with a reliable translation platform for proper data use by customers, partners, suppliers, etc.
Featured CAD Formats
Validation
Compare two CAD files to determine inconsistencies among geometry, 3D annotations, attributes, and more for change detection management, derivative, and archival use cases.
Simplification
Remove featured details such as holes, ribs, and chamfers that streamline data for faster processing by analysis.
Report Creation
Automatically create reports for your PDQ and validation results as 3D PDF or HTML. Utilize individual triggers for report creation and customize contents to enable a future-proof documentation and to leverage communication.
Data Packages
Generate Data Package as a container of deliverables including CAD files, reports and documentations. Create rich and sharable 3D PDF documents with templates designed by you with Elysium’s Data Package Studio.
From Workstation to Enterprise:
Solutions for All User Scenarios
3DxSUITE provides multiple front-ends to leverage your processes.
- On-demand desktop application with execution at local workstation
- Integrated application to utilize batch processing
- Web-based application for enterprise solutions
You can select the best configuration for each user scenario.
For All Industries Advancing Model-Based Capabilities
As digital transformation has progressed across many industries, manufacturing companies have increasingly relied on streamlined 3D data to optimize their engineering process and supply chains. 3DxSUITE supports all the industries that use 3D to design and manufacture products.
Use Cases
Manufacturing
Elysium 3DxSUITE can support the process of delivery of the data for manufacturing. PDQ check based on the company standard assures the data quality, and the data is translated to the format for manufacturing. Data package can be also created and delivered in this process.
LOTAR
How can the validity of LOTAR data be assured? Elysium 3DxSUITE provides the capability to check PDQ based on LOTAR criteria, translate the original design CAD data to archival format, and ensure the validity of the archived data to check the deviation from the original CAD data.
Engineering Change Management
Change is a chance for the improvement. Typical challenge in model based lifecycle is how to notice and share the change information in the entire process. Elysium Solutions supports the engineering change notification in the process. CADValidator in Elysium Solutions provides the capability to automatically detect the change and create the change report.
Mass Validation of JT Data
Inspect before defect. Growing databases and downstream consumption of JT require reliable 3D data. Elysium 3DxSUITE enables the automated validation of JT data through the comparison with the corresponding native source data and the output of validation reports. Users define reusable scenarios with individual validation criteria and thresholds for each downstream process. Validation reports ensure quality of JT contents and can be consumed by casual users on any device.
JT Validation Properties - Levels of Reporting
The neutral 3D master and digital end-to-end processes require reliable checking mechanisms to ensure 3D engineering data. Elysium 3DxSUITE allows the automated validation of JT data and provides a sophisticated reporting of validation results within PLM environments. Based on customizable JT Validation Properties, three Levels of Reporting are available:
- General overview (ok/nok)
- List of differences for 3D geometry, PMI, and attributes
- Complete 3D validation report
Customer Stories
Adient
Elysium solutions advance one of the world’s largest automotive seating manufacturers, Adient, to deliver accurate data globally.
Alpine F1 Team
Elysium software tools work behind-the-scenes to support data quality for Alpine F1 Team.
Media Library
Videos
Elysium Academy
Automated Validation of 3D Engineering Data – Communicate your Changes
Elysium Academy
Simplify your 3D Models – Use Cases for CAE and Collaboration
Elysium Academy
STEP AP242 Update – Elysium’s Commitment to Openness
Elysium Academy
JT as 3D Master vs Mastering JT – The Future is Neutral, Modular and Harmonized
Elysium Academy
How to achieve single-point automation for model-based workflow and TDP
Elysium 3DxSUITE Teaser Movie
Flyers

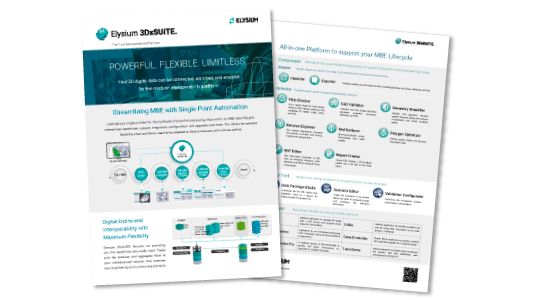

Elysium 3DxSUITE Overview – Streamlining MBE with Single Point Automation
